In this blog, we are going to provide information about spray dyer for your service, dear friends, so that you understand in which industries spray dyer is used and what it is used for. Before we need to get acquainted with the basic concepts.
We hope that the provided information will be useful. Stay with us:

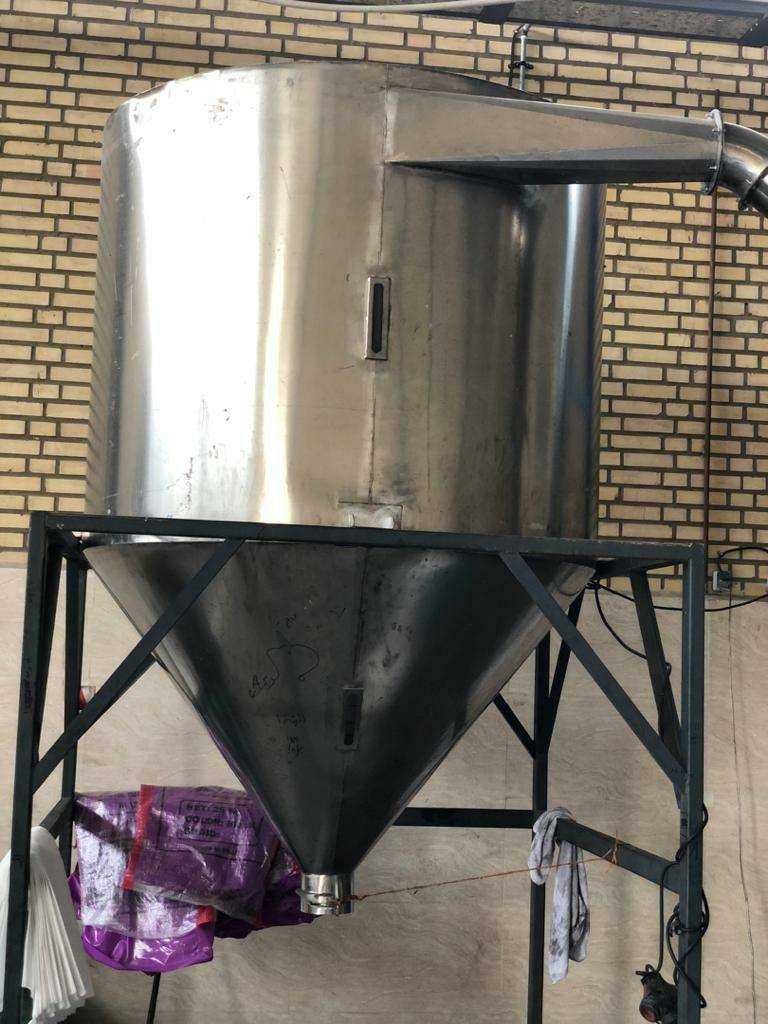

Spray dryer
There is a type of material moisture reduction, which is called spray drying. Spray drying is used to produce and prepare granules or fine particles.
It works by spraying the materials and placing them in close proximity to a hot gaseous agent.
Spray drying method is usually used to produce dry powder from a liquid. Desiccants have different applications and are used in many industries, including food and pharmaceutical industries.
Finally, the products can be brought to the desired size and moisture in industrial processes, and this process is done with the help of dryers.
Type one dryers can be used in food industry laboratories. For this reason, they have a smaller volume and capacity compared to type 2. Compared to type 2, type 2 has more volume and capacity and can be used in ceramic industries and even other solid materials.
All spray dryers use a descending spray, which is a type of material spraying. With the help of this work, we will have a spray with controlled sizes of liquid or slurry.
The most famous spray dryers are rotating discs with high speed and single fluid.
Atomizer wheels are wider for particle size fractionation, but both methods work with particle size compatible fractionation. With this method, two types of inputs are used for some applications in industries.
At first, you should pay attention to the materials needed in a process, then you can use spray dryers with sizes of 10 to 500 micrometers.
Usually, the spray dryer that is used is 40 to 150 micrometers in size.
Know the different types of Darier spray
The most famous type of spray dryer, which is used in industries, is the single type. There is a water source in the single nozzle sprayer, which is in the dry air source, above the chamber.
A fine powder is produced when the air penetrates in the same direction as the spray liquid. But it can produce weak current and a lot of dust. In order to overcome the dust and weak flow of powder, a new generation of spray dryers called multispray solar has been produced, which instead of drying the liquid in one step, it is dried in two steps:
- At the top of the chamber as a single effect
- With a fixed bed at the bottom of the chamber
The fine powders produced by the first drying stage can be recycled in a continuous flow either at the top of the chamber around the spray fluid or at the bottom, within the integrated fluid bed. The powder drying process can be completed on an external vibrating bed that is fluid.
گاز داغ برای خشك كردن به صورت يك جريان كوچك و در همان جهت به عنوان اسپري كننده مايع منتقل می کند و جريان هواي گرم در برابر جريان اسپري كننده قرار مي گيرد. For drying, the hot gas transfers the liquid in a small flow in the same direction as the sprayer, and the hot air flow is against the sprayer flow. With crossflow, the particles spend more time in the system and are commonly referred to as a fluidized bed system. This common flow generally allows the system to be more efficient.
Suitable substitutes for spray dryer
- Spray Freezer Dryer: A very expensive batch process for products that cannot be dried in a spray dryer.
- Cooling dryer: A low-cost continuous process for low-value products that creates a loose powder from the seeds instead of drying them.
- Powder Combustion Dryer: A lower cost continuous process that can be better with high viscosities and solid loads than a spray dryer and sometimes releases a dry crystal powder.
How does the spray dryer work?
A spray dryer takes a liquid stream and converts the solid and solvent into a vapor. The solid is usually collected in a drum or cyclone. The liquid inlet stream is converted to a hot vapor stream through an inlet and vaporized. Solids are quickly separated from droplets as moisture. The inlet is usually used to create small sized droplets to maximize heat transfer and water evaporation rate. The droplet size may be between 20 and 180 micrometers depending on the inlet type. There are two main types of inputs:
- Inlet with a high liquid pressure: that creates 50 to 300 barrels.
- The input of two liquids: one is a dry liquid and the second is a compressed gas, generally air enters in 1 to 7 bars.
Spray dryers can dry the product at a high speed compared to other drying methods. They bring a dry powder to a stage which can be beneficial as it simplifies the process and improves profitability.
In the field of pharmaceuticals, spray dryers are used to produce amorphous solid mixtures and uniformly distribute active pharmaceutical ingredients into a polymer matrix. This puts the active ingredients in a higher energy state, which in turn causes the release of the medicinal extract in the patient’s body.
last word
The Flicker Drum Collection has been producing Flicker Drums, Spray Dyes, Nickel Pans, etc. for many years, and in this way, it has built a brilliant history and is proud to cooperate with collections such as Sood Perak, Rasta Shimi, Eurasia Perak, Pakdane Mehr, Rose Perak Arax Shimi. , Parse has benefited from Alvand and so on.
We hope that you have found answers to all your questions in this blog. If you have more questions, you can contact our experts from the contact section of the site and get answers to your questions.
